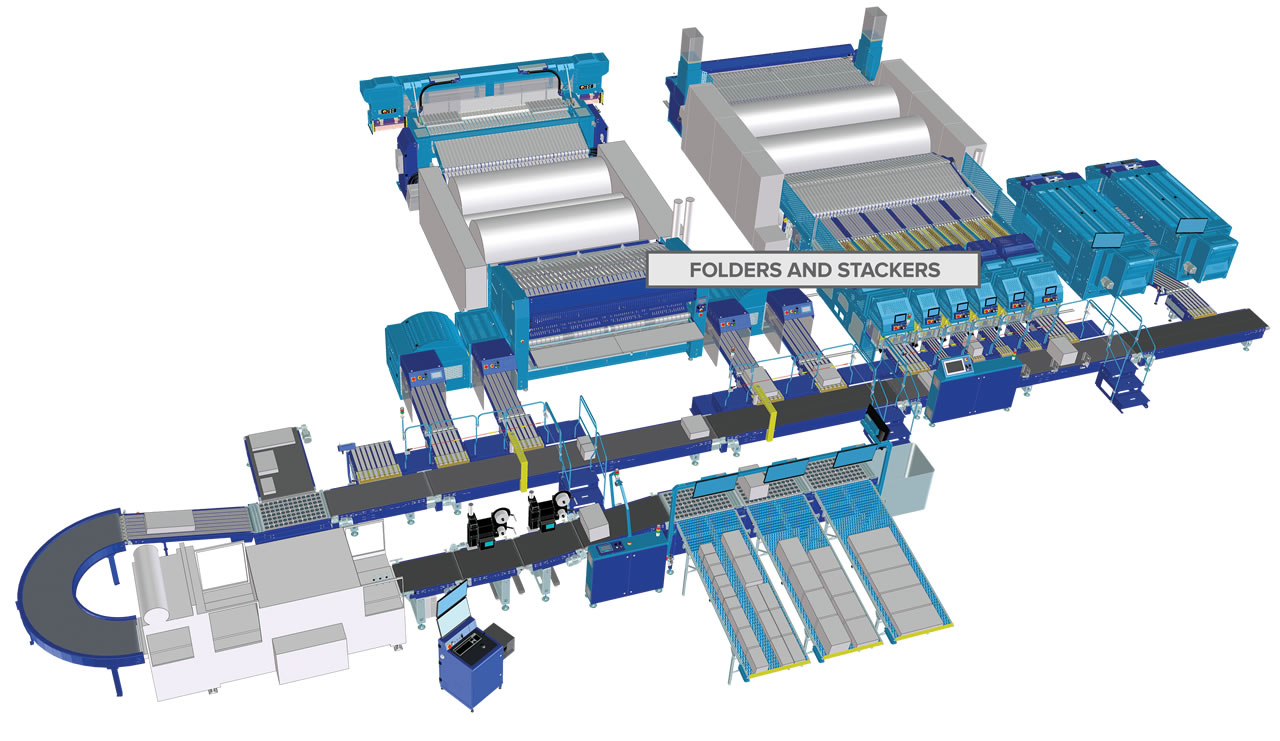

ContattiFOLDERS AND STACKERS
Pizzardi’s folders for flatwork and towels represent the key factor for an industrial laundry. Fast and reliable, they guarantee very accurate folds and high productivity in limited spaces thanks to their compact dimensions. Particular executive soluctions semplify the folders’ maintenance and reduce the stop of the machines.
Pizzardi’s stackers are mechanically reliable and easy to maintain and they stand out for their small size.
The stacking is accurate and fast, both with big and heavy items and with small and light ones.
MAVIS s.5
MEKOS s.3
CLINO s.4
CHRONOS s.9
EE 500 s.4
EP 550 s.1
AXIA s.7
Towel folding machine
• Folding machine for towels, fitted sheets and duvet covers.
• Items with a size of up to 120x210 cm.
• High feeding/stacking speed.
• Up to 4 automatic drop stackers.
• Automatic, manual or mixed selection.
• Lateral fold’s format setting from 130 to 400 mm.
• Stand-alone or master/slave system.
.
.
.
MAVIS s.5
Universal folder with variable folding size
• Small/medium pieces folder.
• Working widths: 620, 772, 970, 1170 mm.
• Combined folding technique.
• High operating speed.
• Overall bypass for unfolded items up to 630 mm.
• First cross fold of runners or pillow cases up to 190 cm long.
• Integrated reject system.
• Folding patterns: half fold, french fold, constant format.
• Manual feeding or integrated in the ironing line.
.
.
.
MEKOS s.3
Multi-lanes lateral folder
• Small/medium pieces folder.
• Working widths from 1330 to 4020 mm.
• Folding technique by reversing conveyor and air blast.
• Up to 3 lateral folds.
• Up to 4 lanes.
• Folding patterns: division, third, constant format, bypass.
• Compact dimensions.
• It can be coupled to Clino crossfolder.
.
.
.
CLINO s.4
Multi-lanes cross folder and stacker
• Small/medium pieces folder.
• Working widths from 1310 to 4000 mm.
• 1-2 cross folds and stacking.
• Up to 4 lanes in different widths and combinations; each lane can have its own folding program.
• Self-centering device.
• Broken/dirty reject system and end of lot management.
• Compact dimensions.
• It can be coupled to Chronos and Mekos folders.
.
.
.
.
CHRONOS s.9
Lateral-cross folder
• Medium/large pieces folder.
• Working widths: 3300-3500 mm.
• Lateral fold made by air blast, n° of lanes 1-2-3-4.
• Cross fold made by knife, n° of lanes 1-2.
• Operating speed up to 60 m/min.
• Direct bypass, 1-2 lanes.
• First / Third lateral fold bypass, 1-2 lanes.
• Automatic identification of up to 4 items.
• Right/left exit automatic selection.
• It can be coupled with EE-EP stackers and Clino cross folder.
.
EE 500 s.4
Stackers for medium-large pieces
• Stacking by roll-off table delivering the linen on a height adjustable table.
• Up to 4 units for each folder side, it could be combined with EP stacker.
.
EP 550 s.1
Stackers for medium-large pieces
• Stacking by clamping and turning the linen over on a height adjustable stacking table.
• Compatible with Chronos s.9 folder.
• Stack’s max size 500x800x250 mm.
• Accurate and fast stacking.
• Movements electronically controlled.
• Motor driven sorting conveyor.
• Automatic delivery on Teren system possible.
• Space saving.
.
